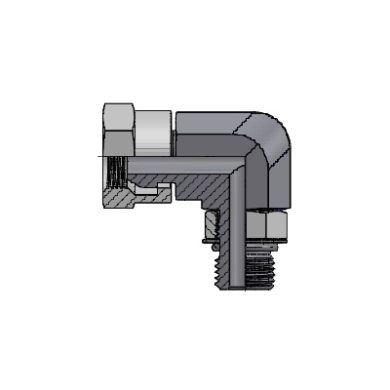

HT6901-MAORB-FPS 90°
| Tube O.D. | A THREAD | B THREAD | Y Hex | C1 Hex | C2 Hex | M | M6 | M7 | J4 | D DRILL | D1 DRILL | Part Number | Working pressure in Bar |
| 3/8″ | 1/4″-18NPSM | 7/16″-20UNF-2A | 14.30 | 17.46 | 17.46 | 23.90 | 28.70 | 31.80 | 19.10 | 5.80/5.30 | 7.50 | HT6901-06-04-NWO | 275 |
| 3/8″ | 3/8″-18NPSM | 9/16″-18UNF-2A | 19.00 | 22.22 | 17.46 | 28.40 | 33.20 | 31.80 | 19.10 | 9.10/8.10 | 7.50 | HT6901-06-06-NWO | 210 |
| 1/2″ | 3/8″-18NPSM | 3/4″-16UNF-2A | 19.00 | 22.22 | 122.22 | 28.40 | 33.20 | 36.80 | 21.90 | 9.10/8.10 | 9.90 | HT6901-08-06-NWO | 210 |
| 1/2″ | 1/2″-14NPSM | 3/4″-16UNF-2A | 19.00 | 25.40 | 22.22 | 28.20 | 35.50 | 36.80 | 21.90 | 12.20/11.20 | 9.90 | HT6901-08-08-NWO | 210 |
| 3/4″ | 3/4″-14NPSM | 1-1/16″-12UN-2A | 27.00 | 31.75 | 31.75 | 35.30 | 43.70 | 50.80 | 29.00 | 16.80/15.20 | 15.50 | HT6901-12-12-NWO | 170 |
